إيريديوم، كوكبة سواتل

(تم التحويل من Iridium satellite constellation)
إيريديوم
Iridium Satellite.jpg
نسخة طبق الأصل من الجيل الأول من ساتل إيريديوم
المُصنعموتورولا (الكوكبة الأصلية)، تالس آلنيا سپيس (الكوكبة التالية)
بلد المنشأالولايات المتحدة
المشغلإريديوم للاتصالات
التطبيقاتcommunications
Specifications
الحافلةLM-700 (original), EliteBus1000 (NEXT)
كتلة الإطلاق689 kilograms (1,519 lb)
الطاقة2 deployable solar panels + batteries
النظامLow Earth orbit
الأبعاد
الانتاج
الوضعIn service
البناء98 (original), 81 (NEXT)[1]
الإطلاق95 (original), 75 (NEXT)
التشغيل82 (76 in active service, 6 spares)
أول إطلاقIridium 4, 5, 6, 7, 8 on 5 May 1997[2]
آخر إطلاق11 Jan 2019 [3]

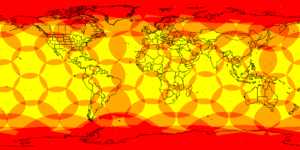

تغطية كوكب الأرض بواسطة سواتل إيريديوم، التي يتم ترتيبها في 6 مدارات لكل منها 11ساتل. تظهر الرسوم المتحركة حوالي 10 دقائق.

توفر إيريديوم، كوكبة سواتل Iridium satellite constellation تغطية معلومات الصوت والبيانات على L band إلى الهواتف الساتلية وأجهزة الإشعار وأجهزة الإرسال والاستقبال المدمجة على سطح الأرض بالكامل. تمتلك إريديوم للاتصالات الكوكبة وتقوم بتشغيلها، بالإضافة إلى بيع المعدات والوصول إلى خدماتها. تم تصميمه بواسطة باري برتيگر و ريمون ليوپولد و كن پيترسون في أواخر عام 1987 (في عام 1988 (محمية ببراءات الاختراع موتورولا المودعة بأسمائهم) ثم طورته موتورولا بموجب عقد بسعر ثابت من 29 يوليو 1993 إلى 1 نوفمبر 1998، عندما أصبح النظام جاهزاً للعمل ومتاحاً تجارياً.

تتكون الكوكبة من 66 ساتلاً نشطاً في المدار، وهي مطلوبة للتغطية العالمية، وسواتل إضافية احتياطية للخدمة في حالة الخروج عن الخدمة.[4] االسواتل موجودة في مدار أرضي منخفض على ارتفاع حوالي 781 كيلومتر و ميل 86.4°.

في عام 1999، نقلت صحيفة "نيويورك تايمز" عن محلل السوق اللاسلكي، أن الأشخاص الذين لديهم "رقم واحد يمكنهم حمله معهم في أي مكان" "باهظ الثمن ... لم يكن هناك سوق قابل للاستمرار على الإطلاق."[5]

نظراً لشكل الهوائيات العاكسة لسواتل إيريديوم الأصلية، ركز الجيل الأول من السواتل ضوء الشمس على مساحة صغيرة من سطح الأرض بطريقة عرضية. نتج عن ذلك ظاهرة تسمى توهج إيريديوم، حيث ظهر الساتل للحظات كواحد من ألمع الأجسام في السماء ليلاً ويمكن رؤيته حتى أثناء النهار.[6] السواتل الأحدث لإيريديوم لا تنتج سطوعاً.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

نظرة عامة

تم تصميم نظام إيريديوم ليتم الوصول إليه عن طريق الهواتف المحمولة الصغيرة، بحجم الهاتف الخلوي. في حين أن "وزن الهاتف الخلوي النموذجي في أوائل التسعينيات كان 10.5 أوقية"[7] كتبت Advertising Age في منتصف عام 1999 أنه "عندما ظهر هاتفها لأول مرة، وكان وزنه رطلاً واحداً وتكلفته 3000 دولاراً، كان يُنظر إليه على أنه باهظ الثمن وغير عملي."[8]

كان القصد من الهوائي غير الموجه أن يكون صغيراً بدرجة كافية ليتم تركيبه على الهاتف المخطط له، ولكن طاقة بطارية الهاتف المنخفضة لم تكن كافية للاتصال بالساتل في مدار ثابت بالنسبة للأرض، 35,785 كيلومتر فوق الأرض؛ المدار العادي لـ ساتل اتصالات، حيث يظهر الساتل ثابتاً في السماء. لكي يتواصل الهاتف المحمول معهم، تكون سواتل إيريديوم أقرب إلى الأرض، في مدار أرضي منخفض، على بعد حوالي 781 كيلومتر فوق السطح. مع فترة مدارية تبلغ حوالي 100 دقيقة، لا يمكن للساتل أن يكون مرئياً للهاتف إلا لمدة 7 دقائق تقريباً، لذلك يتم "تسليم" المكالمة تلقائياً إلى ساتل آخر عندما يتجاوز أحد السواتل الأفق المحلي. يتطلب هذا عدداً كبيراً من السواتل، متباعدة بعناية في المدار القطبي (انظر الصورة المتحركة للتغطية) لضمان عرض ساتل واحد على الأقل باستمرار من كل نقطة على سطح الأرض. مطلوب ما لا يقل عن 66 ساتلاً، في 6 مدارات قطبية تحتوي كل منها على 11 ساتل، من أجل تغطية سلسة.


المدار

السرعة المدارية للسواتل تقارب 27000 كيلومتر\ساعة. تتواصل السواتل مع السواتل المجاورة عبر الوصلات بين السواتل [Ka band]]. يمكن أن يكون لكل ساتل أربعة وصلات بين السواتل: واحد لكل من المجاورات في المقدمة والخلف في نفس المستوى المداري، وواحد لكل من السواتل في المستويات المجاورة لكلا الجانبين. تدور السواتل من القطب إلى نفس القطب مع فترة مدارية تبلغ حوالي 100 دقيقة.[9] يعني هذا التصميم أن هناك رؤية ساتلية ممتازة وتغطية خدمة خاصة في القطبين الشمالي والجنوبي. ينتج عن التصميم المداري فوق القطب "شقوق" حيث تتحرك السواتل في المستويات ذات الدوران العكسي بجانب بعضها البعض في اتجاهين متعاكسين. يجب أن تحدث عمليات تسليم الوصلة عبر التماس بين السواتل بسرعة كبيرة وأن تتعامل مع إزاحات دوپلر; لذلك، يدعم إيريديوم الوصلات بين السواتل فقط بين السواتل التي تدور في نفس الاتجاه. لكوكبة 66 ساتلاً نشطًا ستة مستويات مدارية متباعدة 30 درجة، مع 11 ساتلاً في كل مستوى (بدون احتساب قطع الغيار). كان المفهوم الأصلي هو امتلاك 77 ساتلاً، ومن هنا جاء اسم إيريديوم، وهو العنصر بالرقم الذري 77 والسواتل التي تستحضر نموذج بور للإلكترونات التي تدور حول الأرض كنواة لها. هذه المجموعة المصغرة المكونة من ست مستويات كافية لتغطية سطح الأرض بالكامل في كل لحظة.

History

The Iridium satellite constellation was conceived in the early 1990s as a way to reach high Earth latitudes with reliable satellite communication services.[10] Early calculations showed that 77 satellites would be needed, hence the name Iridium, after the metal with atomic number 77. It turned out that just 66 were required to complete the blanket coverage of the planet with communication services.[10][1]

First generation

The first-generation constellation was developed by Iridium SSC, and financed by Motorola. The satellites were deployed in 1997–2002. All the satellites needed to be in orbit before commercial service could begin.[1]

Iridium SSC employed a globally diverse fleet of rockets to get their 77 satellites into orbit, including launch vehicles (LVs) from the United States, Russia, and China. 60 were launched to orbit on twelve Delta II rocket carrying five satellites each; 21 on three Proton-K/DM2 rocket with seven each, two on one Rokot/Briz-KM rocket carrying two; and 12 on six Long March 2C/SD rocket carrying two each. The total setup cost for the first-generation fleet was approximately US$5 billion.[1]

The first test telephone call was made over the network in 1998, and full global coverage was complete by 2002. However, although the system met its technical requirements, it was not a success in the market. Poor reception from inside buildings, bulky and expensive handset, and competition with the conventional cellular phone contributed to its failure.[11] Insufficient market demand existed for the product at the price points on offer from Iridium as set by its parent company Motorola. The company failed to earn revenue sufficient to service the debt associated with building out the constellation and Iridium went bankrupt, one of the largest bankruptcies in US history at the time.[1][10]

The constellation continued operation following the bankruptcy of the original Iridium corporation. A new entity emerged to operate the satellites and developed a different product placement and pricing strategy, offering communication services to a niche market of customers who required reliable services of this type in areas of the planet not covered by traditional geosynchronous orbit communication satellite services. Users include journalists, explorers, and military units.[10]

No new satellites were launched 2002–2017 to replenish the constellation, even though the original satellites based on the LM-700A model had been projected to have a design life of only 8 years.[1]

Second generation

The second-generation Iridium-NEXT satellites began to be deployed into the existing constellation in January 2017. Iridium Communications, the successor company to Iridium SSC, has ordered a total of 81 new satellites being built by Thales Alenia Space and Orbital ATK: 66 operational units, nine on-orbit spares, and six ground spares.[1]

In August 2008, Iridium selected two companies — Lockheed Martin and Thales Alenia Space — to participate in the final phase of the procurement of the next-generation satellite constellation.[12]

اعتبارا من 2009, the original plan had been to begin launching new satellites in 2014.[13]

The design was complete by 2010, and Iridium stated that the existing constellation of satellites would remain operational until Iridium NEXT is fully operational, with many satellites expected to remain in service until the 2020s, while the NEXT satellites would have improved bandwidth. The new system was to be backward-compatible with the current system. In June 2010, the winner of the contract was announced as Thales Alenia Space, in a $2.1 billion deal underwritten by Compagnie Française d'Assurance pour le Commerce Extérieur.[12] Iridium additionally stated that it expected to spend about $800 million to launch the satellites and upgrade some ground facilities.[14]

SpaceX was contracted to launch all the Iridium NEXT satellites. All the Iridium NEXT launches have taken place using a Falcon 9 rocket launch from Vandenberg Air Force Base in California. Deployment of the constellation began in January 2017, with the launch of the first ten Iridium NEXT satellites.[15] Most recently, on January 11, 2019, SpaceX launched an additional ten satellites, bringing the number of upgraded satellites in orbit to 75.[16]

In January 2020, the Iridium constellation was certified for use in the Global Maritime Distress and Safety System (GMDSS). The certification ended a monopoly on the provision of maritime distress services that had previously been held by Inmarsat since the system became operational in 1999.[17]

Original Iridium constellation

Video of an Iridium flare in the constellation Cassiopeia

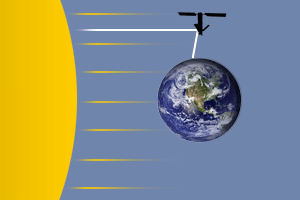

Flaring of Iridium satellites due to reflection of the Sun

The satellites each contained seven Motorola/Freescale PowerPC 603E processors running at roughly 200 MHz,[18] connected by a custom backplane network. One processor was dedicated to each cross-link antenna ("HVARC"), and two processors ("SVARC"s) were dedicated to satellite control, one being a spare. Late in the project an extra processor ("SAC") was added to perform resource management and phone call processing.

The cellular look down antenna had 48 spot beams arranged as 16 beams in three sectors.[19] The four inter-satellite cross links on each satellite operated at 10 Mbit/s. Optical links could have supported a much greater bandwidth and a more aggressive growth path, but microwave cross links were chosen because their bandwidth was more than sufficient for the desired system. Nevertheless, a parallel optical cross link option was carried through a critical design review, and ended when the microwave cross links were shown to support the size, weight and power requirements allocated within the individual satellite's budget. Iridium Satellite LLC stated that their second generation satellites would also use microwave, not optical, inter-satellite communications links. Iridium's cross-links are unique in the satellite telephone industry as other providers do not relay data between satellites; Globalstar and Inmarsat both use a transponder without cross-links.

The original design as envisioned in the 1960s was that of a completely static "dumb satellite" with a set of control messages and time-triggers for an entire orbit that would be uploaded as the satellite passed over the poles. It was found that this design did not have enough bandwidth in the space-based backhaul to upload each satellite quickly and reliably over the poles. Moreover, fixed, static scheduling would have left more than 90% of the satellite links idle at all times. Therefore, the design was scrapped in favour of a design that performed dynamic control of routing and channel selection late in the project, resulting in a one-year delay in system delivery.[بحاجة لمصدر]

Each satellite can support up to 1٬100 concurrent phone calls at 2٬400 bit/s[20] and weighs about 680 kilograms (1,500 lb).[21] The Iridium System presently operates within a 1٬618٫85 to 1٬626٫5 MHz band, part of the wider L band, adjacent to the 1٬610٫6–1٬613٫8 MHz Radio Astronomy Service (RAS) band.

The configuration of the Satellite concept was designated as Triangular Fixed, 80 Inch Main Mission Antenna, Light-weight (TF80L). The packaging design of the spacecraft was managed by Lockheed Bus Spacecraft team; it was the first commercial satellite bus designed at the Sunnyvale Space Systems Division in California. The TF80L configuration was considered a non-conventional, innovative approach to developing a satellite design that could be assembled and tested in five days. The TF80L design configuration was also instrumental in simultaneously solving fundamental design problems involving optimization of the communications payload thermal environment and RF main mission antenna performance, while achieving the highest payload fairing packaging for each of the three main launch vehicle providers.

The first spacecraft mock-up of this design was built in the garage workshop in Santa Clara, California for the Bus PDR/CDR as a proof-of-concept model. This first prototype paved the way for the design and construction of the first engineering models. This design was the basis of the largest constellation of satellites deployed in low Earth orbit. After ten years of successful on-orbit performance, the Iridium team celebrated the equivalent of 1٬000 cumulative years of on-orbit performance in 2008. One of the engineering Iridium satellite models was placed on permanent exhibit in the National Air and Space Museum in Washington, D.C.


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Launch campaign

95 of the 99 built satellites were launched between 1997 and 2002.[مطلوب توضيح] Four satellites were kept on the ground as spares.

The 95 satellites were launched over twenty-two missions (nine missions in 1997, ten in 1998, one in 1999 and two in 2002). One extra mission on Chang Zheng was a payload test and did not carry any actual satellites.

Launch date Launch site Launch vehicle Satellite number (at launch)[1]
1997-05-05 Vandenberg Delta II 7920-10C 4, 5, 6, 7, 8
1997-06-18 Baikonur Proton-K/17S40 9, 10, 11, 12, 13, 14, 16
1997-07-09 Vandenberg Delta II 7920-10C 15, 17, 18, 20, 21
1997-08-21 Vandenberg Delta II 7920-10C 22, 23, 24, 25, 26
1997-09-01 Taiyuan Chang Zheng 2C-III/SD Iridium payload test / no satellite
1997-09-14 Baikonur Proton-K/17S40 27, 28, 29, 30, 31, 32, 33
1997-09-27 Vandenberg Delta II 7920-10C 19, 34, 35, 36, 37
1997-11-09 Vandenberg Delta II 7920-10C 38, 39, 40, 41, 43
1997-12-08 Taiyuan Chang Zheng 2C-III/SD 42, 44
1997-12-20 Vandenberg Delta II 7920-10C 45, 46, 47, 48, 49
1998-02-18 Vandenberg Delta II 7920-10C 50, 52, 53, 54, 56
1998-03-25 Taiyuan Chang Zheng 2C-III/SD 51, 61
1998-03-30 Vandenberg Delta II 7920-10C 55, 57, 58, 59, 60
1998-04-07 Baikonur Proton-K/17S40 62, 63, 64, 65, 66, 67, 68
1998-05-02 Taiyuan Chang Zheng 2C-III/SD 69, 71
1998-05-17 Vandenberg Delta II 7920-10C 70, 72, 73, 74, 75
1998-08-19 Taiyuan Chang Zheng 2C-III/SD 3, 76
1998-09-08 Vandenberg Delta II 7920-10C 77, 79, 80, 81, 82
1998-11-06 Vandenberg Delta II 7920-10C 2, 83, 84, 85, 86
1998-12-19 Taiyuan Chang Zheng 2C-III/SD 11a, 20a
1999-06-11 Taiyuan Chang Zheng 2C-III/SD 14a, 21a
2002-02-11 Vandenberg Delta II 7920-10C 90, 91, 94, 95, 96
2002-06-20 Plesetsk Rokot/Briz-KM 97, 98

^ Iridium satellite number changed over time following failure and replacement.

In-orbit spares

Iridium 6 and its replacement, #51, both flare in a 21-second exposure.

Spare satellites are usually held in a 666 kilometres (414 mi) storage orbit.[4] These can be boosted to the correct altitude and put into service in case of a satellite failure. After the Iridium company emerged from bankruptcy the new owners decided to launch seven new spares, which would have ensured two spare satellites were available in each plane. اعتبارا من 2009, not every plane had a spare satellite; however, the satellites can be moved to a different plane if required. A move can take several weeks and consumes fuel which will shorten the satellite's expected service life.

Significant orbital inclination changes are normally very fuel-intensive, but orbital perturbation analysis aids the process. The Earth's equatorial bulge causes the orbital right ascension of the ascending node (RAAN) to precess at a rate that depends mainly on the period and inclination.

A spare Iridium satellite in the lower storage orbit has a shorter period so its RAAN moves westward more quickly than the satellites in the standard orbit. Iridium simply waits until the desired RAAN (i.e., the desired orbital plane) is reached and then raises the spare satellite to the standard altitude, fixing its orbital plane with respect to the constellation. Although this saves substantial amounts of fuel, it can be a time-consuming process.

During 2016, Iridium experienced in-orbit failures which could not be corrected with in-orbit spare satellites, thus only 64 of the 66 satellites required for seamless global coverage were in operation. This caused some service interruptions until the next-generation constellation was put into service.[22]

Next-generation constellation

In 2017, Iridium began launching[23][24][25][26] Iridium NEXT, a second-generation worldwide network of telecommunications satellites, consisting of 66 active satellites, with another nine in-orbit spares and six on-ground spares. These satellites incorporate features such as data transmission that were not emphasized in the original design.[27] The next-generation terminals and service became commercially available in 2018.[28]

The NEXT satellites incorporate a secondary payload for Aireon,[29] a space-qualified ADS-B data receiver for use by air traffic control and, via FlightAware, by airlines.[30] A tertiary payload on 58 satellites is a marine AIS ship-tracker receiver for Canadian company ExactEarth Ltd.[31]

Iridium NEXT also provides data link to other satellites in space, enabling command and control of other space assets regardless of the position of ground stations and gateways.[27]

Launch campaign

In June 2010, Iridium signed the largest commercial rocket-launch deal ever at that time, a US$492 million contract with SpaceX to launch 70 Iridium NEXT satellites on seven Falcon 9 rockets from 2015 to 2017 via SpaceX leased launch facility at Vandenberg Air Force Base.[32] The final two satellites were originally slated to be orbited by a single launch[33] of an ISC Kosmotras Dnepr.[34] Technical issues and consequential demands from Iridium's insurance delayed the launch of the first pair of Iridium NEXT satellites until April 2016.[35]

Iridium NEXT launch plans originally[36] included launch of satellites on both Ukrainian Dnepr launch vehicles and SpaceX Falcon 9 launch vehicles, with the initial satellites launching on Dnepr in April 2016; however, in February 2016, Iridium announced a change. Due to an extended slowdown in obtaining the requisite launch licenses from Russian authorities, Iridium revamped the entire launch sequence for the 75-satellite constellation. It launched and successfully deployed 10 satellites with SpaceX on January 14, 2017, delayed due to weather from January 9, 2017,[37] and the first of those new satellites took over the duties of an old satellite on March 11, 2017.[38]

At the time of the launch of the first batch, the second flight of ten satellites was planned to launch only three months later in April 2017.[39] However, in a February 15 statement, Iridium said that SpaceX pushed back the launch of its second batch of Iridium NEXT satellites from mid-April to mid-June 2017. This second launch, which occurred on June 25, 2017, delivered another ten Iridium NEXT satellites to low Earth-orbit (LEO) on a SpaceX Falcon 9 rocket. A third launch, which occurred on October 9, 2017, delivered another ten satellites to LEO, as planned. The Iridium NEXT IV mission launched with ten satellites on December 23, 2017. The fifth mission, Iridium NEXT V, launched with ten satellites on March 30, 2018. The sixth launch on May 22, 2018, sent another 5 satellites into LEO.[40] The penultimate Iridium NEXT launch occurred on July 25, 2018 launching another 10 Iridium NEXT satellites.[41] The final ten NEXT satellites launched on January 11, 2019. Six additional satellites are in storage on the ground as spares.

Launch date Launch site Launch vehicle Satellite numbers (at launch)[2]
2017-01-14 Vandenberg Falcon 9 FT 102, 103, 104, 105, 106, 108, 109, 111, 112, 114[42]
2017-06-25 Vandenberg Falcon 9 FT 113, 115, 117, 118, 120, 121, 123, 124, 126, 128[42]
2017-10-09 Vandenberg Falcon 9 B4 100, 107, 119, 122, 125, 129, 132, 133, 136, 139[42]
2017-12-23 Vandenberg Falcon 9 FT 116, 130, 131, 134, 135, 137, 138, 141, 151, 153[42]
2018-03-30 Vandenberg Falcon 9 B4 140, 142, 143, 144, 145, 146, 148, 149, 150, 157[42]
2018-05-22 Vandenberg Falcon 9 B4 110, 147, 152, 161, 162[42]
2018-07-25 Vandenberg Falcon 9 B5 154, 155, 156, 158, 159, 160, 163, 164, 165, 166[42]
2019-01-11 Vandenberg Falcon 9 B5 167, 168, 169, 170, 171, 172, 173, 175, 176, 180[42]

^ Iridium satellite number could change over time following failure and replacement.

Iridium 127 had to be re-designated as Iridium 100 before launch due to a ground software issue.[43] [42] Iridium 101, 174, 177, 178, 179 and 181 are the ground spares.

Patents and manufacturing

The main patents on the Iridium system, U.S. Patents 5,410,728: "Satellite cellular telephone and data communication system", and 5,604,920, are in the field of satellite communications, and the manufacturer generated several hundred patents protecting the technology in the system. Satellite manufacturing initiatives were also instrumental in the technical success of the system. Motorola made a key hire of the engineer who set up the automated factory for Apple's Macintosh. He created the technology necessary to mass-produce satellites on a gimbal, taking weeks instead of months or years and at a record low construction cost of only US$5 million per satellite. At its peak during the launch campaign in 1997 and 1998, Motorola produced a new satellite every 4.3 days, with the lead-time of a single satellite being 21 days.[44][بحاجة لمصدر غير رئيسي]

Defunct satellites

Over the years a number of Iridium satellites have ceased to work and are no longer in active service, some are partially functional and have remained in orbit whereas others have tumbled out of control or have reentered the atmosphere.[45]

Iridium 21, 27, 20, 11, 24, 71, 44, 14, 79, 69 and 85 all suffered from issues before entering operational service soon after their launch in 1997. By 2018, of these eleven, Iridium 21, 27, 79 and 85 have decayed out of orbit; Iridium 11, 14, 20 and 21 were renamed to Iridium 911, 914, 920 and 921 respectively since replacements of the same name were launched.[46]

From 2017, several first-generation Iridium satellites have been deliberately de-orbited after being replaced by operational Iridium NEXT satellites.[47]

As of October 2020, total of 73 previously operating satellites are now defunct or no longer exist.

List of defunct Iridium satellites previously in operating service[45][46]
Satellite Date Replacement Status
Iridium 2 ? ? Uncontrolled orbit
Iridium 73 ~1998 Iridium 75 Uncontrolled orbit
Iridium 48 May 2001 Iridium 20 Decayed May 2001
Iridium 9 October 2000 Iridium 84 Decayed March 2003
Iridium 38 September 2003 Iridium 82 Uncontrolled orbit
Iridium 16 April 2005 Iridium 86 Uncontrolled orbit
Iridium 17 August 2005 Iridium 77 Uncontrolled orbit
Iridium 74 January 2006 Iridium 21 In orbit as spare
Iridium 36 January 2007 Iridium 97 Uncontrolled orbit
Iridium 28 July 2008 Iridium 95 In orbit
Iridium 33 February 2009 Iridium 91 Destroyed February 2009
(Collided with Kosmos 2251)
Iridium 26 August 2011 Iridium 11 In orbit
Iridium 7 July 2012 Previously Iridium 51* Failed in orbit
Iridium 4 2012 Iridium 96 In orbit
Iridium 29 Early 2014 Iridium 45 In orbit
Iridium 42 August 2014 Iridium 98 Uncontrolled orbit
Iridium 63 August 2014 Iridium 14 In orbit
Iridium 6 October 2014 *Iridium 51 Decayed 23 December 2017
Iridium 57 May 2016 Iridium 121 Observed drifting from nominal position
Iridium 39 June 2016 Iridium 15 In orbit
Iridium 74 June 2017 (spare) Decayed June 2017
Iridium 30 August 2017 Iridium 126 Decayed September 2017
Iridium 77 August 2017 Iridium 109 Decayed September 2017
Iridium 8 November 2017 Iridium 133 Decayed 24 November 2017
Iridium 34 December 2017 Iridium 122 Decayed 8 January 2018
Iridium 43 Decayed 11 February 2018[48] Iridium 111 Decaying orbit
Iridium 3 Decayed 8 February 2018 Iridium 131 Decaying orbit
Iridium 21 Decayed 24 May 2018 Decayed
Iridium 37 Decayed 26 May 2018 Decayed
Iridium 68 Decayed 6 June 2018 Decayed
Iridium 67 Decayed 2 July 2018 Decayed
Iridium 75 Decayed 10 July 2018 Decayed
Iridium 81 Decayed 17 July 2018 Decayed
Iridium 65 Decayed 19 July 2018 Decayed
Iridium 41 Decayed 28 July 2018 Decayed
Iridium 80 Decayed 12 August 2018 Decayed
Iridium 18 Decayed 19 August 2018 Decayed
Iridium 66 Decayed 23 August 2018 Decayed
Iridium 98 Decayed 24 August 2018 Decayed
Iridium 76 Decayed 28 August 2018 Decayed
Iridium 47 Decayed 1 September 2018 Decayed
Iridium 12 Decayed 2 September 2018 Decayed
Iridium 50 Decayed 23 September 2018 Decayed
Iridium 40 Decayed 23 September 2018 Decayed
Iridium 53 Decayed 30 September 2018 Decayed
Iridium 86 Decayed 5 October 2018 Decayed
Iridium 10 Decayed 6 October 2018 Decayed
Iridium 70 Decayed 11 October 2018 Decayed
Iridium 56 Decayed 11 October 2018 Decayed
Iridium 15 Decayed 14 October 2018 (Over No. Pacific) Decayed
Iridium 20 Decayed 22 October 2018 Decayed
Iridium 11 Decayed 22 October 2018 Decayed
Iridium 84 Decayed 4 November 2018 Decayed
Iridium 83 Decayed 5 November 2018 Decayed
Iridium 52 Decayed 5 November 2018 Decayed
Iridium 62 Decayed 7 November 2018 Decayed
Iridium 31 Decayed 20 December 2018 Decayed
Iridium 35 Decayed 26 December 2018 Decayed
Iridium 90 Decayed 23 January 2019 Decayed
Iridium 32 Decayed 10 March 2019 Decayed
Iridium 59 Decayed 11 March 2019 Decayed
Iridium 91 Decayed 13 March 2019 Decayed
Iridium 14 Decayed 15 March 2019 Decayed
Iridium 60 Decayed 17 March 2019 Decayed
Iridium 95 Decayed 25 March 2019 Decayed
Iridium 55 Decayed 31 March 2019 Decayed
Iridium 64 Decayed 1 April 2019 Decayed
Iridium 58 Decayed 7 April 2019 Decayed
Iridium 54 Decayed 11 May 2019 Decayed
Iridium 24 Decayed 12 May 2019 Decayed
Iridium 61 Decayed 23 July 2019 Decayed
Iridium 97 Decayed 27 December 2019 Decayed
Iridium 96 Decayed 30 May 2020 Decayed
Total: 73


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Iridium 33 collision

At 16:56 UTC on February 10, 2009, Iridium 33 collided with the defunct Russian satellite Kosmos 2251.[49] This accidental collision was the first hypervelocity collision between two artificial satellites in low Earth orbit.[50][51] Iridium 33 was in active service when the accident took place. It was one of the oldest satellites in the constellation, having been launched in 1997. The satellites collided at a relative speed of roughly 35,000 km/h (22,000 miles per hour)[52] This collision created over 2000 large space debris fragments that can be hazardous to other satellites.[53]

Iridium moved one of its in-orbit spares, Iridium 91 (formerly known as Iridium 90), to replace the destroyed satellite,[54] completing the move on March 4, 2009.

Technical details

Air interface

Communication between satellites and handsets is done using a TDMA and FDMA based system using L-band spectrum between 1٬616 and 1٬626٫5 MHz.[19] Iridium exclusively controls 7.775 MHz of this and shares a further 0.95 MHz. In 1999, Iridium agreed to timeshare a portion of spectrum, allowing radio astronomers to observe hydroxyl emissions; the amount of shared spectrum was recently reduced from 2.625 MHz.[55][56]

External "hockey puck" type antennas used with Iridium handheld phones, data modems and SBD terminals are usually defined as 3 dB gain, 50 ohms impedance with RHCP (right hand circular polarization) and 1.5:1 VSWR.[57] As Iridium antennas function at frequencies very close to those of GPS, a single antenna may be utilized through a pass-through for both Iridium and GPS reception.

The type of modulation used is normally DE-QPSK, although DE-BPSK is used on the uplink (mobile to satellite) for acquisition and synchronization.[58] Each time slot is 8.28 milliseconds long and sits in a 90 milliseconds frame. Within each FDMA channel there are four TDMA time slots in each direction.[59] The TDMA frame starts off with a 20.32 milliseconds period used for simplex messaging to devices such as pagers and to alert Iridium phones of an incoming call, followed by the four upstream slots and four downstream slots. This technique is known as time-division multiplexing. Small guard periods are used between time slots. Regardless of the modulation method being used, communication between mobile units and satellites is performed at 25 kilobaud.

Channels are spaced at 41.666 kHz and each channel occupies a bandwidth of 31.5 kHz; this allows space for Doppler shifts.[60]

Handoff

The Iridium system uses three different handoff types. As a satellite travels over the ground location, calls are handed to adjacent spot-beams; this occurs approximately every fifty seconds. A satellite only stays in view for seven minutes at the equator.[61] When the satellite disappears from view, an attempt is made to hand the call to another satellite. If no other satellite is in view, the connection is dropped. This may occur when the signal from either satellite is blocked by an obstacle. When successful, the inter-satellite handoff may be noticeable by a quarter-second interruption.[59]

The satellites are also able to transfer mobile units to different channels and time slots within the same spot beam.

Ground stations

Iridium routes phone calls through space. In addition to communicating with the satellite phones in its footprint, each satellite in the constellation also maintains contact with two to four adjacent satellites, and routes data between them, to effectively create a large mesh network. There are several ground stations which link to the network through the satellites visible to them. The space-based backhaul routes outgoing phone call packets through space to one of the ground station downlinks ("feeder links"). Iridium ground stations interconnect the satellite network with land-based fixed or wireless infrastructures worldwide to improve availability.[62] Station-to-station calls from one satellite phone to another can be routed directly through space without going through a ground station. As satellites leave the area of a ground station, the routing tables are updated and packets headed for the ground station are forwarded to the next satellite just coming into view of the ground station. Communication between satellites and ground stations is at 20 and 30 GHz.[63]

Gateways are located in

The pre-bankruptcy corporate incarnation of Iridium built eleven gateways, most of which have since been closed.[65]

See also

References

  1. ^ أ ب ت ث ج ح خ Graham, William (2018-03-29). "Iridium NEXT-5 satellites set to ride on SpaceX Falcon 9". NasaSpaceFlight.com. Archived from the original on 2018-03-30. Retrieved 2018-03-30.
  2. ^ "Iridium". Encyclopedia Astronautica. Archived from the original on 22 July 2017. Retrieved 13 September 2016.
  3. ^ Clark, Stephen (Jan 11, 2019). "Launch timeline for Iridium's eighth launch with SpaceX". Spaceflight Now. Archived from the original on 17 January 2019. Retrieved 11 Jan 2019.
  4. ^ أ ب "Iridium satellites". N2yo.com. Archived from the original on 19 December 2014. Retrieved 12 December 2014.
  5. ^ Mitchell Martin (October 8, 1999). "Iridium Fails to Find a Market : Satellite Phone Misses Its Orbit". The New York Times.
  6. ^ "Catching a Flaring/Glinting Iridium". Visual Satellite Observer's Homepage. Archived from the original on August 3, 2013. Retrieved Dec 28, 2011.
  7. ^ D. E. Sullivan (2004). "US Geological Survey Fact Sheet 2006-3097" (PDF).
  8. ^ Laura Petrecca; Beth Snyder (July 26, 1999). "Iridium sends new signal, splits with Ammirati". Advertising Age.
  9. ^ http://www.iridium.it/en/iridium.htm Archived 2018-05-14 at the Wayback Machine, Homepage, accessed 22 May 2018.
  10. ^ أ ب ت ث https://www.newscientist.com/article/mg23130850-700-iridium-story-of-a-communications-solution-no-one-listened-to/ Archived 2017-09-07 at the Wayback Machine, New Scientist, accessed 7 August 2016.
  11. ^ https://www.independent.co.uk/news/business/down-to-earth-reasons-for-iridium-failure-1113638.html
  12. ^ أ ب Amos, Jonathan (2010-06-02). "Huge order for Iridium spacecraft". BBC News Online. Retrieved 2010-06-02.
  13. ^ Max Jarman (February 1, 2009). "Iridium Satellite Phones Second Life". The Arizona Republic. Archived from the original on May 10, 2012. Retrieved February 16, 2009.
  14. ^ Pasztor, Andy; Michaels, Daniel (June 1, 2010). "Thales Team Beats Lockheed for Satellite Job". Wall Street Journal. Retrieved 12 August 2014.
  15. ^ Graham, William (13 January 2017). "SpaceX Returns To Flight with Iridium NEXT launch – and landing". NasaSpaceflight.com. Archived from the original on 12 June 2018. Retrieved 22 May 2018.
  16. ^ "Iridium NEXT – NASASpaceFlight.com". Archived from the original on 2019-10-15. Retrieved 2020-01-02.
  17. ^ Gebhardt, Chris (23 January 2020). "Iridium marks major milestone with maritime safety, breaks monopoly". NasaSpaceflight.com. Retrieved 24 January 2020.
  18. ^ "How the Iridium Network Works". Satphone.usa.com. Archived from the original on 7 September 2011. Retrieved 12 December 2014.
  19. ^ أ ب "Manual for ICAO Aeronautical Mobile Satellite (ROUTE) Service Part 2-IRIDIUM; DRAFT v4.0" (PDF). ICAO. 21 March 2007. Archived from the original (PDF) on 22 February 2014. Retrieved 2007-02-14.
  20. ^ "How the Iridium Network Works". Satphoneusa.com. Archived from the original on 7 September 2011. Retrieved 12 December 2014.
  21. ^ Fossa, C. E.; Raines, R.A.; Gunsch, G.H.; Temple, M.A. (13–17 July 1998). "An overview of the IRIDIUM (R) low Earth orbit (LEO) satellite system". Proceedings of the IEEE 1998 National Aerospace and Electronics Conference, 1998. NAECON 1998.: 152–159. doi:10.1109/NAECON.1998.710110. ISBN 0-7803-4449-9.
  22. ^ "Aging Iridium Network Waits for Key Satellite Replacements". 2016-08-23. Archived from the original on 2016-11-06. Retrieved 2016-11-13.
  23. ^ Peter B. de Selding (29 April 2016). "First batch of Iridium Next satellites good to go for July SpaceX launch". Space News.
  24. ^ GPS World Staff (17 January 2017). "SpaceX launches first batch of Iridium NEXT satellites". GPS World. Archived from the original on 19 September 2017. Retrieved 12 October 2017.
  25. ^ Jeff Foust (25 June 2017). "SpaceX launches second batch of Iridium satellites". Space News.
  26. ^ Caleb Henry (9 October 2017). "SpaceX launches third set of Iridium Next satellites". Space News.
  27. ^ أ ب Iridium NEXT Archived 2008-04-06 at the Wayback Machine, accessed 20100616.
  28. ^ "Thales and Cobham unveil Iridium Certus terminals". www.marinemec.com. Archived from the original on 2018-01-20. Retrieved 2018-01-19.
  29. ^ "News Release". Aireon.com. Archived from the original on 21 March 2015. Retrieved 12 December 2014.
  30. ^ "Aireon and FlightAware Partner to Launch GlobalBeacon Airline Solution for ICAO Airline Flight Tracking Compliance". Archived from the original on 7 October 2016. Retrieved 21 September 2016.
  31. ^ "ExactEarth and Harris Corporation Form Strategic Alliance to Provide Real-Time Global Maritime Tracking and Information Solutions". exactEarth | Investors (in الإنجليزية البريطانية). Archived from the original on 2018-07-18. Retrieved 2018-07-18.
  32. ^ Largest Commercial Rocket Launch Deal Ever Signed by SpaceX Archived 2010-07-24 at the Wayback Machine, SPACE.com, 2010-06-16, accessed 2010-06-16.
  33. ^ de Selding, Peter B. (2011-06-22). "Iridium Signs Backup Launch Contract with ISC Kosmotras". Space News. Retrieved 2012-08-28.
  34. ^ Fitchard, Kevin (2012-08-27). "How Iridium took a chance on SpaceX and won". GigaOM. Archived from the original on 2018-01-22. Retrieved 2012-08-28.
  35. ^ "Component Issue Delays Iridium Next Launches by 4 Months". SpaceNews.com (in الإنجليزية الأمريكية). Retrieved 2016-01-07.
  36. ^ "Component Issue Delays Iridium Next Launches by Four Months". SpaceNews. 2015-10-29. Retrieved 2016-08-14.
  37. ^ "Iridium is excited to share we're planned to launch on Monday, Jan 9 at 10:22am PST weather permitting". Archived from the original on 2017-02-05. Retrieved 2017-01-06.
  38. ^ "SNOC Report: SV109 is now fully integrated into the network replacing legacy SV77". Archived from the original on 17 April 2017. Retrieved 12 March 2017.
  39. ^ de Selding, Peter B. (2016-02-25). "Iridium, frustrated by Russian red tape, to launch first 10 Iridium Next satellites with SpaceX in July". SpaceNews. Retrieved 2016-02-25.
  40. ^ "Iridium Completes Sixth Successful Iridium® NEXT Launch". Iridium Satellite Communications.
  41. ^ "Iridium Completes Seventh Successful Iridium® NEXT Launch". Iridium Satellite Communications.
  42. ^ أ ب ت ث ج ح خ د ذ "Iridium-NEXT". Gunter's Space Page.
  43. ^ Tweet from Matt Desch about Iridium 127
  44. ^ Wilson, J. R. (1 August 1998). "Iridium: a COTS technology success story". Military & Aerospace Electronics. Retrieved 15 September 2019.
  45. ^ أ ب Sladen, Rod. "Iridium Constellation Status". rod.sladen.org.uk. Rod Sladen. Archived from the original on 22 October 2017. Retrieved 13 October 2017.
  46. ^ أ ب Sladen, Rod. "Iridium Failures". rod.sladen.org.uk. Rod Sladen. Archived from the original on 3 July 2017. Retrieved 20 August 2016.
  47. ^ "Iridium Constellation Status". www.rod.sladen.org.uk. Archived from the original on 2009-02-13. Retrieved 2009-02-16.
  48. ^ "Archived copy". Archived from the original on 2018-06-26. Retrieved 2018-05-22.{{cite web}}: CS1 maint: archived copy as title (link)
  49. ^ Harwood, Bill (2009-02-11). "U.S. And Russian Satellites Collide". CBS News. Archived from the original on 2012-05-10. Retrieved 2009-02-11.
  50. ^ "Satellite Collision Leaves Significant Debris Clouds" (PDF). Orbital Debris Quarterly News. NASA Orbital Debris Program Office. 13 (2): 1–2. April 2009. Archived from the original (PDF) on 27 May 2010. Retrieved 20 May 2010.  هذا المقال يضم نصاً من هذا المصدر، الذي هو مشاع.
  51. ^ Broad, William J. (2009-02-12). "Debris Spews Into Space After Satellites Collide". The New York Times. Archived from the original on 2017-10-10. Retrieved 2010-05-05.
  52. ^ "Colliding Satellites: Iridium 33 and Cosmos 2251". Spaceweather.com. Archived from the original on 4 March 2016. Retrieved 12 December 2014.
  53. ^ "Orbital Debris Quarterly News, July 2011" (PDF). NASA Orbital Debris Program Office. Archived from the original (PDF) on 20 October 2011. Retrieved 3 January 2021.
  54. ^ Iannotta, Becky (2009-02-11). "U.S. Satellite Destroyed in Space Collision". Space.com. Archived from the original on 2012-05-10. Retrieved 2009-02-11.
  55. ^ "Radio astronomers agree to 6-year frequency "time share" with Iridium LLC" (Press release). European Science Foundation. 31 May 1999. Archived from the original on 2009-01-09. Retrieved 2012-07-30.
  56. ^ "FCC Grants Iridium Exclusive Access to Additional Domestic and Global Spectrum for Mobile Satellite Services" (Press release). Iridium Satellite LLC MediaRoom. Archived from the original on 2010-06-10. Retrieved 2012-07-30.
  57. ^ Iridium 9602 transceiver product developers guide.
  58. ^ Dan Veeneman. "Iridium". Decode Systems. Retrieved 2007-02-14.
  59. ^ أ ب Gifford, Patrick (June 18, 2015). "The Global Telephone System: Iridium". Archived from the original on June 23, 2015. Retrieved June 22, 2015.
  60. ^ "Manual for ICAO Aeronautical Mobile Satellite (ROUTE) Service Part 2-IRIDIUM; DRAFT v4.0" (PDF). ICAO. 21 March 2007. Archived from the original (PDF) on 14 April 2008. Retrieved 2007-02-14.
  61. ^ "UU+ : Quick Start Guide" (PDF). Uuplus.com. Archived from the original (PDF) on 2016-03-03. Retrieved 2016-02-24.
  62. ^ "IRIDIUM - How it works". iridium.it. Retrieved 2020-04-09.
  63. ^ "Work Projects". 24 September 2008. Archived from the original on 24 September 2008.
  64. ^ "Iridium Unveils New Ground Station in Chile – Via Satellite". Satellitetoday.com. 2019-03-28. Retrieved 2019-07-04.
  65. ^ "Iridium Gateway Closures". Disadirect.disa.mil. Archived from the original on 2012-12-12. Retrieved 2016-02-24.

External links

قالب:Falcon rocket launches
