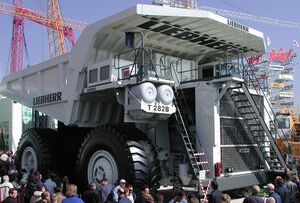

A large 400-short-ton (360-long-ton) Liebherr T 282B "ultra class" haul truck

Haul trucks are off-road, heavy-duty dump trucks specifically engineered for use in high-production mining and exceptionally demanding construction environments. Most are dual axle; at least two examples of tri-axles were made in the 1970s. Haul trucks are denominated by their payload capacity, by weight (variously in tons, tonnes, and kg).

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

الوصف

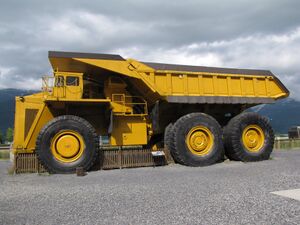

The WABCO 3200 was a rare example of a tri-axle haul truck configuration
A medium sized haul truck, the 214-short-ton (194 t; 191-long-ton) Caterpillar 789[1]

Most haul trucks have a two-axle design, but two well-known models from the 1970s, the 350T Terex Titan and 235T WABCO 3200/B, had three axles. [2] Haul truck capacities range from 40 short tons (36.3 t; 35.7 long tons) to nearly 500 short tons (454 t; 446 long tons).

An example on the smaller end is the Caterpillar 775 (rated at 70 short tons [62 long tons]).[3] Quarry operations (which produce payloads that have value) are typically employ smaller trucks[لماذا؟] than mining operations (such as removing undesirable overburden, an expense).[بحاجة لمصدر]

Haul trucks can generally be distinguished from standard dump trucks by:

  • Being far too large to travel legally on public roads
  • Having a dump body made of exceptionally strong steel plate that extends over the cab to protect it, angled upright at its end (or entirely) to aid in dumping; some are heated by exhaust gases to prevent loads from sticking or freezing to the bed;
  • Having a driver's cab narrower than its body;
  • No axle suspension;
  • Limited speed and operating range;
  • Special off-road only tires;
  • A ratio of dead weight to payload not exceeding 1:1.6[بحاجة لمصدر]

Most large haul trucks use some form of traction motors coupled to regenerative brakings for power, braking, or both.

Haul trucks are classified by:

  • Type of unloading (dump or rear-eject);
  • Direction of discharge (side, rear);
  • Type of body (hopper, platform, sliding hopper, sliding platform).


Ultra class

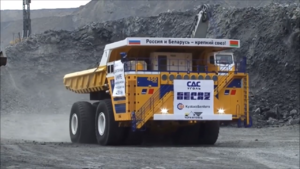

The world's largest ultra class haul truck, the Russian 496-short-ton (443-long-ton) BelAZ 75710

The largest, highest-payload-capacity haul trucks are referred to as ultra class trucks. The ultra class includes all haul trucks with a payload capacity of 300 short tons (270 long tons) or greater.[4] اعتبارا من October 2013, the BelAZ 75710 has the highest payload capacity, 450 metric tons (440 long tons; 500 short tons).[5]

الإخراج الخلفي

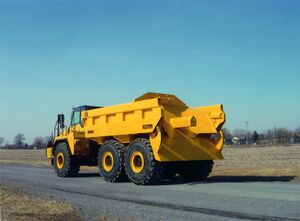

A rear-eject Komatsu HM400-2

A rear-eject configuration is an alternative haul truck body style. Instead of lifting the bed vertically, the hydraulic cylinder pushes a ram-face horizontally through the body to eject the hauled load.[6]

Rear-eject dump vehicles were first introduced in the 1980s by LeRoy Hagenbuch, P.E. of Philippi-Hagenbuch, Inc.,[7] for a refuse hauling application in New York City. They were designed to work on Volvo BM truck chassis. While the functionality of the ejector bodies worked well, they were prone to maintenance issues and were not replicated until the 1990s.[بحاجة لمصدر] The next documented ejector bodies were developed by DDT, a UK truck manufacturer.[8] A variation using steel chains instead of a hydraulic ram was introduced by Bell, but did not become popular.[9]

Caterpillar Inc. began offering a rear-eject option using technology originally designed for its scrapers after one of its contractors successfully converted a few CAT D400 models. The new design, installed on the company's D400E model, was less likely to jam in cold weather.[9] CAT later began manufacturing a standard R.E. body for its 730, 740, and 740B articulating haul-truck series.[10]

Philippi-Hagenbuch, a company specializing in truck body design, developed its own mechanism for its rear-eject bodies, and has patented its design in the US, Europe, and Australia.[6] The company customizes Rear-Eject bodies or trailers for several manufacturers' off-highway vehicles; including both rigid and articulating varieties.[11]

As of 2014 Caterpillar Inc. and Philippi-Hagenbuch, Inc. are continuing to manufacture Rear-Eject bodies for off-highway applications,[6] each using its own design of mechanism.

المزايا والعيوب

There are both advantages and disadvantages to a rear-eject truck:

المزايا

  • Because rear-eject bodies do not lift, or move externally in any way, they maintain a lower center of gravity. This means more stability on uneven terrain where the truck might tip over during the dump process.
  • The truck can also be driven while dumping is in progress; this reduces subsequent time and effort spent on grading the dumped material.[12]
  • Rear ejects are typically better suited to completely eject sticky material, preventing "carry-back."[9]
  • A rear-eject truck can deliver a load in an area with a low overhead barrier.[13]

العيوب

أمثلة بارزة

Ultra-Class Haul Trucks
image model manufacturer first
model
number
built
capacity propulsion type notes
BelAZ 75710 5.png BelAZ 75710 BelAZ 2013 496 short tons (443 long tons) diesel-electric

Employs 8 tires, on two axles, with all-wheel drive, and all-wheel steering.

Liebherr t282 1.jpg Liebherr T 282B Liebherr 2004 400 short tons (360 long tons) diesel-electric
Bucyrus MT6300AC Bucyrus International 2008 400 short tons (360 long tons) diesel-electric

Firm was acquired by Caterpillar in 2010.

Caterpillar 797 Truck2.jpg Caterpillar 797 Caterpillar 1997 360 short tons (320 long tons) diesel-mechanical The 797F model has an increased capacity of 400 short tons.
Komatsu 960E-1 Komatsu America Corp. 2008 360 short tons (320 long tons) diesel-electric
BelAZ 75600.JPG Belaz 75600 BelAZ 2005 350 short tons (310 long tons) diesel-electric
SparTitanFr.JPG Terex 33-19 "Titan" General Motors Diesel Division 1973 1 350 short tons (310 long tons) diesel-electric Prototype, only 1 built
KOMATSU 930E-2.JPG Komatsu 930E Komatsu America Corp. 1995 2,100 320 short tons (290 long tons) diesel-electric Number built as of September, 2018
