زحف (خواص المواد)

حركة الجليد في مثلجة هو مثال للزحف في الجواسئ.

الزحف هو الاستطالة الدائمة التي تحدث في المادة نتيجة التحميل بحمل ثابت لفترة طويلة. الزحف يحدث في المواد في أي درجة حرارة ولكنه يظهر بصورة أكبر في درجات الحرارة المرتفعة، فمثلا الرصاص يمكن أن تحدث فيه عملية الزحف في درجة حرارة الغرفة، وبالمثل نجد أن زجاج النوافذ يكون سمكه من أسفل أكبر من سمكه في الأعلى وذلك نتيجة الزحف تحت تأثير وزنه وذلك خلال عدة سنوات.

The rate of deformation is a function of the material's properties, exposure time, exposure temperature and the applied structural load. Depending on the magnitude of the applied stress and its duration, the deformation may become so large that a component can no longer perform its function — for example creep of a turbine blade could cause the blade to contact the casing, resulting in the failure of the blade. Creep is usually of concern to engineers and metallurgists when evaluating components that operate under high stresses or high temperatures. Creep is a deformation mechanism that may or may not constitute a failure mode. For example, moderate creep in concrete is sometimes welcomed because it relieves tensile stresses that might otherwise lead to cracking.

Unlike brittle fracture, creep deformation does not occur suddenly upon the application of stress. Instead, strain accumulates as a result of long-term stress. Therefore, creep is a "time-dependent" deformation.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

الاعتماد على درجة الحرارة

The temperature range in which creep deformation may occur differs in various materials. Creep deformation generally occurs when a material is stressed at a temperature near its melting point. While tungsten requires a temperature in the thousands of degrees before creep deformation can occur, lead may creep at room temperature, and ice will creep at temperatures below 0 °C (32 °F).[1] Plastics and low-melting-temperature metals, including many solders, can begin to creep at room temperature. Glacier flow is an example of creep processes in ice.[2] The effects of creep deformation generally become noticeable at approximately 35% of the melting point[مطلوب توضيح] for metals and at 45% of melting point for ceramics.[3]


المراحل

Strain (ε) as a function of time due to constant stress over an extended period for a Class M material.

Creep behavior can be split into three main stages. In primary, or transient, creep, the strain rate is a function of time. In Class M materials, which include most pure materials, strain rate decreases over time. This can be due to increasing dislocation density, or it can be due to evolving grain size. In class A materials, which have large amounts of solid solution hardening, strain rate increases over time due to a thinning of solute drag atoms as dislocations move.[4]

In the secondary, or steady-state, creep, dislocation structure and grain size have reached equilibrium, and therefore strain rate is constant. Equations that yield a strain rate refer to the steady-state strain rate. Stress dependence of this rate depends on the creep mechanism.

In tertiary creep, the strain rate exponentially increases with stress. This can be due to necking phenomena, internal cracks, or voids, which all decrease the cross-sectional area and increase the true stress on the region, further accelerating deformation and leading to fracture.[5]

المعادلة العامة

where ε is the creep strain, C is a constant dependent on the material and the particular creep mechanism, m and b are exponents dependent on the creep mechanism, Q is the activation energy of the creep mechanism, σ is the applied stress, d is the grain size of the material, k is Boltzmann's constant, and T is the absolute temperature.[6]

زحف إنفصامي

At high stresses (relative to the shear modulus), creep is controlled by the movement of dislocations. For dislocation creep, Q = Q(self diffusion), 4 ≤ m ≤ 6, and b < 1. Therefore, dislocation creep has a strong dependence on the applied stress and the intrinsic activation energy and a weaker dependence on grain size. As grain size gets smaller, grain boundary area gets larger, so dislocation motion is impeded.

Some alloys exhibit a very large stress exponent (m > 10), and this has typically been explained by introducing a "threshold stress," σth, below which creep can't be measured. The modified power law equation then becomes:

where A, Q and m can all be explained by conventional mechanisms (so 3 ≤ m ≤ 10), and R is the gas constant. The creep increases with increasing applied stress, since the applied stress tends to drive the dislocation past the barrier, and make the dislocation get into a lower energy state after bypassing the obstacle, which means that the dislocation is inclined to pass the obstacle. In other words, part of the work required to overcome the energy barrier of passing an obstacle is provided by the applied stress and the remainder by thermal energy.

زحف نابارو-هرنگ

A diagram showing the diffusion of atoms and vacancies under Nabarro–Herring creep.

Nabarro–Herring (NH) creep is a form of diffusion creep, while dislocation glide creep does not involve atomic diffusion. Nabarro–Herring creep dominates at high temperatures and low stresses. As shown in the figure on the right, the lateral sides of the crystal are subjected to tensile stress and the horizontal sides to compressive stress. The atomic volume is altered by applied stress: it increases in regions under tension and decreases in regions under compression. So the activation energy for vacancy formation is changed by ±σΩ, where Ω is the atomic volume, the positive value is for compressive regions and negative value is for tensile regions. Since the fractional vacancy concentration is proportional to exp(−Qf ± σΩ/RT), where Qf is the vacancy-formation energy, the vacancy concentration is higher in tensile regions than in compressive regions, leading to a net flow of vacancies from the regions under compression to the regions under tension, and this is equivalent to a net atom diffusion in the opposite direction, which causes the creep deformation: the grain elongates in the tensile stress axis and contracts in the compressive stress axis.

In Nabarro–Herring creep, k is related to the diffusion coefficient of atoms through the lattice, Q = Q(self diffusion), m = 1, and b = 2. Therefore, Nabarro–Herring creep has a weak stress dependence and a moderate grain size dependence, with the creep rate decreasing as the grain size is increased.

Nabarro–Herring creep is strongly temperature dependent. For lattice diffusion of atoms to occur in a material, neighboring lattice sites or interstitial sites in the crystal structure must be free. A given atom must also overcome the energy barrier to move from its current site (it lies in an energetically favorable potential well) to the nearby vacant site (another potential well). The general form of the diffusion equation is

where D0 has a dependence on both the attempted jump frequency and the number of nearest neighbor sites and the probability of the sites being vacant. Thus there is a double dependence upon temperature. At higher temperatures the diffusivity increases due to the direct temperature dependence of the equation, the increase in vacancies through Schottky defect formation, and an increase in the average energy of atoms in the material. Nabarro–Herring creep dominates at very high temperatures relative to a material's melting temperature.

زحف كوبل

Coble creep is the second form of diffusion controlled creep. In Coble creep the atoms diffuse along grain boundaries to elongate the grains along the stress axis. This causes Coble creep to have a stronger grain size dependence than Nabarro–Herring creep, thus, Coble creep will be more important in materials composed of very fine grains. For Coble creep k is related to the diffusion coefficient of atoms along the grain boundary, Q = Q(grain boundary diffusion), m = 1, and b = 3. Because Q(grain boundary diffusion) is less than Q(self diffusion), Coble creep occurs at lower temperatures than Nabarro–Herring creep. Coble creep is still temperature dependent, as the temperature increases so does the grain boundary diffusion. However, since the number of nearest neighbors is effectively limited along the interface of the grains, and thermal generation of vacancies along the boundaries is less prevalent, the temperature dependence is not as strong as in Nabarro–Herring creep. It also exhibits the same linear dependence on stress as Nabarro–Herring creep. Generally, the diffusional creep rate should be the sum of Nabarro–Herring creep rate and Coble creep rate. Diffusional creep leads to grain-boundary separation, that is, voids or cracks form between the grains. To heal this, grain-boundary sliding occurs. The diffusional creep rate and the grain boundary sliding rate must be balanced if there are no voids or cracks remaining. When grain-boundary sliding can not accommodate the incompatibility, grain-boundary voids are generated, which is related to the initiation of creep fracture.

Solute drag creep

Solute drag creep is one of the mechanisms for power-law creep (PLC), involving both dislocation and diffusional flow. Solute drag creep is observed in certain metallic alloys. In these alloys, the creep rate increases during the first stage of creep (Transient creep) before reaching a steady-state value. This phenomenon can be explained by a model associated with solid-solution strengthening. At low temperatures, the solute atoms are immobile and increase the flow stress required to move dislocations. However, at higher temperatures, the solute atoms are more mobile and may form atmospheres and clouds surrounding the dislocations. This is especially likely if the solute atom has a large misfit in the matrix. The solutes are attracted by the dislocation stress fields and are able to relieve the elastic stress fields of existing dislocations. Thus the solutes become bound to the dislocations. The concentration of solute, C, at a distance, r, from a dislocation is given by the Cottrell atmosphere defined as[7]

where C0 is the concentration at r = ∞ and β is a constant which defines the extent of segregation of the solute. When surrounded by a solute atmosphere, dislocations that attempt to glide under an applied stress are subjected to a back stress exerted on them by the cloud of solute atoms. If the applied stress is sufficiently high, the dislocation may eventually break away from the atmosphere, allowing the dislocation to continue gliding under the action of the applied stress. The maximum force (per unit length) that the atmosphere of solute atoms can exert on the dislocation is given by Cottrell and Jaswon[8]

When the diffusion of solute atoms is activated at higher temperatures, the solute atoms which are "bound" to the dislocations by the misfit can move along with edge dislocations as a "drag" on their motion if the dislocation motion or the creep rate is not too high. The amount of "drag" exerted by the solute atoms on the dislocation is related to the diffusivity of the solute atoms in the metal at that temperature, with a higher diffusivity leading to lower drag and vice-versa. The velocity at which the dislocations glide can be approximated by a power law of the form

where m is the effective stress exponent, Q is the apparent activation energy for glide and B0 is a constant. The parameter B in the above equation was derived by Cottrell and Jaswon for interaction between solute atoms and dislocations on the basis of the relative atomic size misfit εa of solutes to be[9]

where k is Boltzmann’s constant, and r1 and r2 are the internal and external cut-off radii of dislocation stress field. c0 and Dsol are the atomic concentration of the solute and solute diffusivity respectively. Dsol also has a temperature dependence that makes a determining contribution to Qg.

If the cloud of solutes does not form or the dislocations are able to break away from their clouds, glide occurs in a jerky manner where fixed obstacles, formed by dislocations in combination with solutes, are overcome after a certain waiting time with support by thermal activation. The exponent m is greater than 1 in this case. The equations show that the hardening effect of solutes is strong if the factor B in the power-law equation is low so that the dislocations move slowly and the diffusivity Dsol is low. Also, solute atoms with both high concentration in the matrix and strong interaction with dislocations are strong gardeners. Since misfit strain of solute atoms is one of the ways they interact with dislocations, it follows that solute atoms with large atomic misfit are strong gardeners. A low diffusivity Dsol is an additional condition for strong hardening.[10] [11]

Solute drag creep sometimes shows a special phenomenon, over a limited strain rate, which is called the Portevin–Le Chatelier effect. When the applied stress becomes sufficiently large, the dislocations will break away from the solute atoms since dislocation velocity increases with the stress. After breakaway, the stress decreases and the dislocation velocity also decreases, which allows the solute atoms to approach and reach the previously departed dislocations again, leading to a stress increase. The process repeats itself when the next local stress maximum is obtained. So repetitive local stress maxima and minima could be detected during solute drag creep.


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Dislocation climb-glide creep

Dislocation climb-glide creep is observed in materials at high temperature. The initial creep rate is larger than the steady-state creep rate. Climb-glide creep could be illustrated as follows: when the applied stress is not enough for a moving dislocation to overcome the obstacle on its way via dislocation glide alone, the dislocation could climb to a parallel slip plane by diffusional processes, and the dislocation can glide on the new plane. This process repeats itself each time when the dislocation encounters an obstacle. The creep rate could be written as:

where ACG includes details of the dislocation loop geometry, DL is the lattice diffusivity, M is the number of dislocation sources per unit volume, σ is the applied stress, and Ω is the atomic volume. The exponent m for dislocation climb-glide creep is 4.5 if M is independent of stress and this value of m is consistent with results from considerable experimental studies.

زحف هارپر-دورن

Harper–Dorn creep is a climb-controlled dislocation mechanism at low stresses that has been observed in aluminum, lead, and tin systems, in addition to nonmetal systems such as ceramics and ice. It is characterized by two principal phenomena: a power-law relationship between the steady-state strain rate and applied stress at a constant temperature which is weaker than the natural power-law of creep, and an independent relationship between the steady-state strain rate and grain size for a provided temperature and applied stress. The latter observation implies that Harper–Dorn creep is controlled by dislocation movement; namely, since creep can occur by vacancy diffusion (Nabarro–Herring creep, Coble creep), grain boundary sliding, and/or dislocation movement, and since the first two mechanisms are grain-size dependent, Harper–Dorn creep must therefore be dislocation-motion dependent.[12] The same was also confirmed in 1972 by Barrett and co-workers[13] where FeAl3 precipitates lowered the creep rates by 2 orders of magnitude compared to highly pure Al, thus, indicating Harper-Dorn creep to be a dislocation based mechanism.

However, Harper–Dorn creep is typically overwhelmed by other creep mechanisms in most situations, and is therefore not observed in most systems. The phenomenological equation which describes Harper–Dorn creep is

where ρ0 is dislocation density (constant for Harper–Dorn creep), Dv is the diffusivity through the volume of the material, G is the shear modulus and b is the Burgers vector, σs, and n is the creep exponent which varies between 1 and 3.[14]

The volumetric activation energy indicates that the rate of Harper–Dorn creep is controlled by vacancy diffusion to and from dislocations, resulting in climb-controlled dislocation motion.[15][16] Unlike in other creep mechanisms, the dislocation density here is constant and independent of the applied stress.[12] Moreover, the dislocation density must be low for Harper–Dorn creep to dominate. The density has been proposed to increase as dislocations move via cross-slip from one slip-plane to another, thereby increasing the dislocation length per unit volume. Cross-slip can also result in jogs along the length of the dislocation, which, if large enough, can act as single-ended dislocation sources.[17] According to a recent study,[14] the extremely low dislocation density in a single crystalline material will result in the natural power law (n ≈ 3). On the other hand n might vary between 1 and 3 based on the initial dislocation densities of crystals which is slightly higher.[18]

التحميص

At high temperatures, it is energetically favorable for voids to shrink in a material. The application of tensile stress opposes the reduction in energy gained by void shrinkage. Thus, a certain magnitude of applied tensile stress is required to offset these shrinkage effects and cause void growth and creep fracture in materials at high temperature. This stress occurs at the sintering limit of the system.[19]

The stress tending to shrink voids that must be overcome is related to the surface energy and surface area-volume ratio of the voids. For a general void with surface energy γ and principle radii of curvature of r1 and r2, the sintering limit stress is[20]

Below this critical stress, voids will tend to shrink rather than grow. Additional void shrinkage effects will also result from the application of a compressive stress. For typical descriptions of creep, it is assumed that the applied tensile stress exceeds the sintering limit.

Creep also explains one of several contributions to densification during metal powder sintering by hot pressing. A main aspect of densification is the shape change of the powder particles. Since this change involves permanent deformation of crystalline solids, it can be considered a plastic deformation process and thus sintering can be described as a high temperature creep process.[21] The applied compressive stress during pressing accelerates void shrinkage rates and allows a relation between the steady-state creep power law and densification rate of the material. This phenomenon is observed to be one of the main densification mechanisms in the final stages of sintering, during which the densification rate (assuming gas-free pores) can be explained by:[22][23]

in which ρ̇ is the densification rate, ρ is the density, Pe is the pressure applied, n describes the exponent of strain rate behavior, and A is a mechanism-dependent constant. A and n are from the following form of the general steady-state creep equation,

where ε̇ is the strain rate, and σ is the tensile stress. For the purposes of this mechanism, the constant A comes from the following expression, where A′ is a dimensionless, experimental constant, μ is the shear modulus, b is the Burgers vector, k is Boltzmann's constant, T is absolute temperature, D0 is the diffusion coefficient, and Q is the diffusion activation energy:[22]

أمثلة

الپوليمر

a) Applied stress and b) induced strain as functions of time over a short period for a viscoelastic material.

Creep can occur in polymers and metals which are considered viscoelastic materials. When a polymeric material is subjected to an abrupt force, the response can be modeled using the Kelvin–Voigt model. In this model, the material is represented by a Hookean spring and a Newtonian dashpot in parallel. The creep strain is given by the following convolution integral:

where σ is applied stress, C0 is instantaneous creep compliance, C is creep compliance coefficient, τ is retardation time, and f(τ) is the distribution of retardation times.

When subjected to a step constant stress, viscoelastic materials experience a time-dependent increase in strain. This phenomenon is known as viscoelastic creep.

At a time t0, a viscoelastic material is loaded with a constant stress that is maintained for a sufficiently long time period. The material responds to the stress with a strain that increases until the material ultimately fails. When the stress is maintained for a shorter time period, the material undergoes an initial strain until a time t1 at which the stress is relieved, at which time the strain immediately decreases (discontinuity) then continues decreasing gradually to a residual strain.

Viscoelastic creep data can be presented in one of two ways. Total strain can be plotted as a function of time for a given temperature or temperatures. Below a critical value of applied stress, a material may exhibit linear viscoelasticity. Above this critical stress, the creep rate grows disproportionately faster. The second way of graphically presenting viscoelastic creep in a material is by plotting the creep modulus (constant applied stress divided by total strain at a particular time) as a function of time.[24] Below its critical stress, the viscoelastic creep modulus is independent of stress applied. A family of curves describing strain versus time response to various applied stress may be represented by a single viscoelastic creep modulus versus time curve if the applied stresses are below the material's critical stress value.

Additionally, the molecular weight of the polymer of interest is known to affect its creep behavior. The effect of increasing molecular weight tends to promote secondary bonding between polymer chains and thus make the polymer more creep resistant. Similarly, aromatic polymers are even more creep resistant due to the added stiffness from the rings. Both molecular weight and aromatic rings add to polymers' thermal stability, increasing the creep resistance of a polymer.[25]

Both polymers and metals can creep. Polymers experience significant creep at temperatures above around −200 °C (−330 °F); however, there are three main differences between polymeric and metallic creep.[26]

Polymers show creep basically in two different ways. At typical work loads (5% up to 50%) ultra high molecular weight polyethylene (Spectra, Dyneema) will show time-linear creep, whereas polyester or aramids (Twaron, Kevlar) will show a time-logarithmic creep.

الخشب

Wood is considered as an orthotropic material, exhibiting different mechanical properties in three mutually perpendicular directions. Experiments show that the tangential direction in solid wood tend display a slightly higher creep compliance than in the radial direction.[27][28] In the longitudinal direction, the creep compliance is relatively low and usually do not show any time-dependency in comparison to the other directions.

It has also been shown that there is a substantial difference in viscoelastic properties of wood depending on loading modality (creep in compression or tension). Studies have shown that certain Poisson's ratios gradually go from positive to negative values during the duration of the compression creep test, which does not occur in tension.[27]

الخرسانة

The creep of concrete, which originates from the calcium silicate hydrates (CSH) in the hardened Portland cement paste (which is the binder of mineral aggregates), is fundamentally different from the creep of metals as well as polymers. Unlike the creep of metals, it occurs at all stress levels and, within the service stress range, is linearly dependent on the stress if the pore water content is constant. Unlike the creep of polymers and metals, it exhibits multi-months aging, caused by chemical hardening due to hydration which stiffens the microstructure, and multi-year aging, caused by long-term relaxation of self-equilibrated microstresses in the nanoporous microstructure of the CSH. If concrete is fully dried it does not creep, though it is difficult to dry concrete fully without severe cracking.


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

تجربة قياس الزحف

تجرى هذه التجربة بتعريض عينة لإجهاد شد ثابت عند درجة حرارة معينة ثم نقوم بقياس الانفعال الناتج كل فترة زمنية معينة.

من هذه التجربة نحصل على منحنى به ثلاث مناطق توضح عملية الزحف:

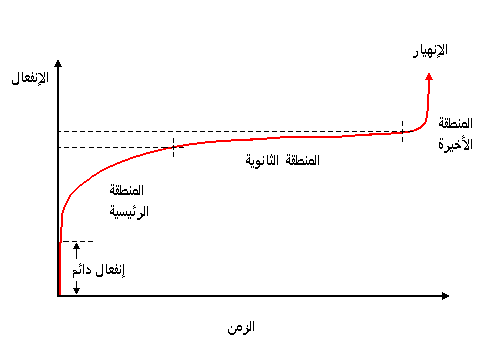

منحنى الزحف


  1. المنطقة الأولى: ويحدث بها زيادة كبيرة في الانفعال الناتج.
  2. المنطقة الثانية: وفيها الانفعال الناتج يزيد بقيمة صغيرة جدا.
  3. المنطقة الثالثة: ويحدث فيها زيادة في الانفعال بقيمة كبيرة حتى تحدث عملية الانهيار.

التطبيقات

Creep on the underside of a cardboard box: a largely empty box was placed on a smaller box, and more boxes were placed on top of it. Due to the weight, the portions of the empty box not upheld by the lower support gradually deflected downward.

Though mostly due to the reduced yield strength at higher temperatures, the collapse of the World Trade Center was due in part to creep from increased temperature.[29]

The creep rate of hot pressure-loaded components in a nuclear reactor at power can be a significant design constraint, since the creep rate is enhanced by the flux of energetic particles.

Creep in epoxy anchor adhesive was blamed for the Big Dig tunnel ceiling collapse in Boston, Massachusetts, that occurred in July 2006.[30]

The design of tungsten light bulb filaments attempts to reduce creep deformation. Sagging of the filament coil between its supports increases with time due to the weight of the filament itself. If too much deformation occurs, the adjacent turns of the coil touch one another, causing an electrical short and local overheating, which quickly leads to failure of the filament. The coil geometry and supports are therefore designed to limit the stresses caused by the weight of the filament, and a special tungsten alloy with small amounts of oxygen trapped in the crystallite grain boundaries is used to slow the rate of Coble creep.

Creep can cause gradual cut-through of wire insulation, especially when stress is concentrated by pressing insulated wire against a sharp edge or corner. Special creep-resistant insulations such as Kynar (polyvinylidene fluoride) are used in wirewrap applications to resist cut-through due to the sharp corners of wire wrap terminals. Teflon insulation is resistant to elevated temperatures and has other desirable properties, but is notoriously vulnerable to cold-flow cut-through failures caused by creep.

In steam turbine power plants, pipes carry steam at high temperatures (566 °C, 1,051 °F) and pressures (above 24.1 MPa, 3,500 psi). In jet engines, temperatures can reach up to 1,400 °C (2,550 °F) and initiate creep deformation in even advanced-design coated turbine blades. Hence, it is crucial for correct functionality to understand the creep deformation behavior of materials.

Creep deformation is important not only in systems where high temperatures are endured such as nuclear power plants, jet engines and heat exchangers, but also in the design of many everyday objects. For example, metal paper clips are stronger than plastic ones because plastics creep at room temperatures. Aging glass windows are often erroneously used as an example of this phenomenon: measurable creep would only occur at temperatures above the glass transition temperature around 500 °C (932 °F). While glass does exhibit creep under the right conditions, apparent sagging in old windows may instead be a consequence of obsolete manufacturing processes, such as that used to create crown glass, which resulted in inconsistent thickness.[31][32]

Fractal geometry, using a deterministic Cantor structure, is used to model the surface topography, where recent advancements in thermoviscoelastic creep contact of rough surfaces are introduced. Various viscoelastic idealizations are used to model the surface materials, including the Maxwell, Kelvin–Voigt, standard linear solid and Jeffrey models.[33]

Nimonic 75 has been certified by the European Union as a standard creep reference material.[34]

The practice of tinning stranded wires to facilitate the process of connecting the wire to a screw terminal, though having been prevalent and considered standard practice for quite a while, has been discouraged by professional electricians,[35] owing to the fact that the solder is likely to creep under the pressure exerted on the tinned wire end by the screw of the terminal, causing the joint to lose tension and hence create a loose contact over time. The accepted practice when connecting stranded wire to a screw terminal is to use a wire ferrule on the end of the wire.

المنع

Generally, materials have better creep resistance if they have higher melting temperatures, lower diffusivity, and higher shear strength. Close-packed structures are usually more creep resistant as they tend to have lower diffusivity than non-close-packed structures. Common methods to reduce creep include:

  • Solid solution strengthening: adding other elements in solid solution can slow diffusion, as well as slow dislocation motion via the mechanism of solute drag.
  • Particle dispersion strengthening: adding particles, often incoherent oxide or carbide particles, block dislocation motion.
  • Precipitation hardening: precipitating a second phase out of the primary lattice blocks dislocation motion.
  • Grain size: increasing grain size decreases the amount of grain boundaries, which results in slower creep due to the high diffusion rate along grain boundaries. This is opposite low-temperature applications, where increasing grain size decreases strength by blocking dislocation motion. In very high temperature applications such as jet engine turbines, single crystals are often used.

السبائك الفائقة

Materials operating at high temperatures, such as this nickel superalloy jet engine (RB199) turbine blade, must be able to withstand creep present at these temperatures.

Materials operating in high-performance systems, such as jet engines, often reach extreme temperatures surpassing 1,000 °C (1,830 °F), necessitating specialized material design. Superalloys based on cobalt, nickel, and iron have been engineered to be highly resistant to creep. The term ‘superalloy’ generally refers to austenitic nickel-, iron-, or cobalt-based alloys that use either γ′ or γ″ precipitation strengthening to maintain strength at high temperature.

The γ′ phase is a cubic L12-structure Ni3(Al,Ti,Ta,Nb) phase that produces cuboidal precipitates. Superalloys often have a high (60–75%) volume fraction of γ′ precipitates.[36] γ′ precipitates are coherent with the parent γ phase, and are resistant to shearing due to the development of an anti-phase boundary when the precipitate is sheared. The γ″ phase is a tetragonal Ni3Nb or Ni3V structure. The γ″ phase, however, is unstable above 650 °C (1,202 °F), so γ″ is less commonly used as a strengthening phase in high temperature applications. Carbides are also used in polycrystalline superalloys to inhibit grain boundary sliding.[37]

Many other elements can be added to superalloys to tailor their properties. They can be used for solid solution strengthening, to reduce the formation of undesirable brittle precipitates, and to increase oxidation or corrosion resistance. Nickel-based superalloys have found widespread use in high-temperature, low stress applications. Iron-based superalloys are generally not used at high temperatures as the γ′ phase is not stable in the iron matrix, but are sometimes used at moderately high temperatures, as iron is significantly cheaper than nickel. Cobalt-based γ′ structure was found in 2006, allowing the development of cobalt-based superalloys, which are superior to nickel-based superalloys in corrosion resistance. However, in the base (cobalt–tungsten–aluminum) system, γ′ is only stable below 900 °C (1,650 °F), and cobalt-based superalloys tend to be weaker than their Ni counterparts.[38]
