إتش‌إم‌إس ڤكتوريا (1887)

HMS Victoria (1887) William Frederick Mitchell.jpg
التاريخ
UK
الاسم: HMS Victoria
الباني: Armstrong Whitworth Elswick yard
التكلفة: £845,000
رقم الحوض: 490
وُضِعت: 13 June 1885
أُطلِقت: 9 April 1887
رُخـِّصت: March 1890
الكنية: list error: <br /> list (help)
"The Slipper";[1]
Victoria and her sister ship Sans Pareil together were known as "The Pair of Slippers"[2]
مصيرها: Accidentally rammed and sunk, 22 June 1893
السمات العامة [3]
الفئة والنوع: Victoria-class battleship
الازاحة: 11,020 طن كبيرs (11,200 t)
الطول: 340 قدم (100 م)
العارضة: 70 قدم (21 م)
الغاطس: 26 قدم 9 بوصة (8.15 م)
قدرة التركيب: list error: <br /> list (help)
8,000 ihp (6,000 kو) (natural draught)
14,482 ihp (10,799 kو) (forced draught)
الدفع: list error: <br /> list (help)
2 × Humphreys & Tennant triple-expansion engines
2 × screws
السرعة: list error: <br /> list (help)
16 عقدة (18 ميل/س; 30 كم/س) (natural draught)
17.3 عقدة (19.9 ميل/س; 32.0 كم/س) (forced draught)
المرافقون: 430; as flagship: 583
التسليح: list error: <br /> list (help)
2 × BL 16.25 بوصة (413 mم) guns
1 × BL 10 بوصة (250 mم) gun
12 × BL 6 بوصة (150 mم) guns
12 × 6-pounder guns
6 × 14 بوصة (360 mم) torpedo tubes
الدروع: list error: mixed text and list (help)
  • Belt: 18 بوصة (46 cم)
  • Bulkheads: 16 بوصة (41 cم)
  • Turrets: 17 بوصة (43 cم)
  • Redoubt: 18 بوصة (46 cم)
  • Forward screen to battery: 6 بوصة (15 cم)
  • After screen to battery: 3 بوصة (7.6 cم)
  • Conning Tower: 14 بوصة (36 cم) (sides), 2 بوصة (5.1 cم) (top)
  • Deck: 3 بوصة (7.6 cم)
Service record
جزء من Mediterranean Fleet
القادة Captain Maurice Bourke

HMS Victoria was the lead ship in her class of two battleships of the Royal Navy. On 22 June 1893, she collided with Camperdown near Tripoli, Lebanon during manoeuvres and quickly sank, taking 358 crew with her, including the commander of the British Mediterranean Fleet, Vice-Admiral Sir George Tryon. One of the survivors was executive officer of the Victoria, John Jellicoe, later commander-in-chief of the British Grand Fleet at the Battle of Jutland.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Grounding

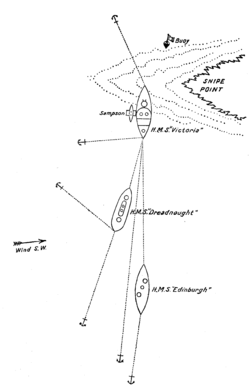

Position of ships for re-floating Victoria

On 29 January 1892, Victoria ran aground at Snipe Point near Platea on the Greek coast. Platea had been selected as a convenient friendly port for British ships to use as a base for exercises with torpedoes and mines and each ship of the Mediterranean Fleet would go there in turn during the winter. Torpedoes would be launched from fast moving ships in real battle conditions, but it was desirable to practice this in relatively shallow waters so that the torpedoes could be recovered afterwards (they were supposed to float once their motors stopped but sometimes sank). Captain Bourke had appreciated the potential difficulties of operating his ship in shallow waters, and had ordered a crew to set out a buoy offshore where the water shoaled to 60 قدم (18 م). The crew missed the shallowest point, so that Victoria ran aground at 9 عقدة (10 ميل/س; 17 كم/س) onto the rocky shoal and stuck fast. The fore end of the ship ended up 7 قدم (2.1 م) higher out of the water than would be normal as momentum drove it up onto the shoal. The ship's bottom was damaged, and three compartments flooded. The stern, however, was still in 66 قدم (20 م) of water. Admiral Tryon was notified and departed for the scene in Surprise, also ordering a dockyard tug Sampson with pumping equipment and hawsers. Hecla — a torpedo-depot ship — was already at Platea and made two attempts to tow Victoria free. These failed, but she assisted with laying anchors to hold the rear of the ship steady until further help could arrive. Phaeton, Edinburgh, Dreadnought, Scout and Humber were also called to the scene.[4]


The collision

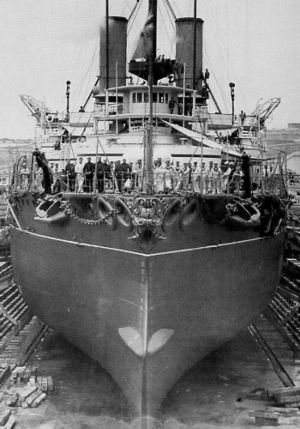

Victoria in dry dock at Malta

The British Mediterranean Fleet was one of the most powerful in the world at the time. The Royal Navy saw the Mediterranean as a vital sea route between Britain and India, under constant threat from the navies of France and Italy, and concentrated an impressive force in it. On 22 June 1893, the bulk of the fleet, 11 ironclads (eight battleships and three large cruisers), were on their annual summer exercises off Tripoli in Lebanon.

Tryon was a strict disciplinarian who believed that the best way of keeping his crews taut and efficient was by continuous fleet evolutions, which before the invention of wireless were signalled by flags, semaphore and signal lamp. He had gained a reputation as a daring and highly proficient handler of his ships. His speciality was a new system (the "TA" system) by which complex manoeuvres could be handled by only a few simple signals, but which required his ships' captains to use their initiative; a quality which had become blunted by decades of naval peace since Trafalgar, and which was unwelcome in a hierarchical navy which deified Admiral Horatio Nelson while misunderstanding what he had stood for. A taciturn and difficult man for his subordinate officers to deal with, Tryon deliberately avoided making his intentions known to them in advance, so as to train them to be adept in handling unpredictable situations.


Camperdown strikes Victoria

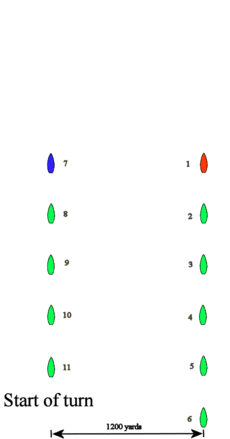

Animation of the sinking.

Right column
1: Victoria (red)
2: Nile
3: Dreadnought
4: Inflexible
5: Collingwood
6: Phaeton

Left column
7: Camperdown (blue)
8: Edinburgh
9: Sans Pareil
10: Edgar
11: Amphion.

By the time that both captains had ordered the engines on their respective ships reversed, it was too late, and Camperdown's ram struck the starboard side of Victoria about 12 قدم (3.7 م) below the waterline and penetrated 9 قدم (2.7 م) into it. Reversing the engines only had the effect of causing the ram to be withdrawn to let in more seawater before all of the watertight doors on Victoria had been closed. Two minutes after the collision, the ships were separated again.

Artistic rendering of the collision between the Victoria and the Camperdown as it appeared in a French illustrated weekly.

The weather was hot.

Victoria sinking after the collision, taken from Collingwood. Also shown Nile.

Victoria capsized just 13 minutes after the collision, rotating to starboard with a terrible crash as her boats and anything free fell to the side and as water entering the funnels caused explosions when it reached the boilers.

Camperdown's damaged bow

Admiralty technical report

Diagram showing collision point and penetration of Camperdown into Victoria
Section showing a BL 16.25 بوصة (413 mم) gun. The weight of the guns contributed to instability of the ship and the low forecastle design


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

وصلات خارجية

References

  1. ^ Hough, pp. 47-48
  2. ^ Hough, p. 48
  3. ^ Chesneau, Koleśnik & Campbell 1979, p. 30.
  4. ^ Fitzgerald p.333-336

Bibliography

  • Chesneau, Roger; Koleśnik, Eugène M.; Campbell, N.J.M. (1979). Conway's All the World's Fighting Ships, 1860–1905. London: Conway Maritime Press. ISBN 0-85177-133-5.CS1 maint: ref=harv (link)
  • Bennett, Geoffrey (1968). Charlie B: A Biography of Admiral Lord Beresford of Metemmeh and Curraghmore. London: Peter Dawnay Ltd.
  • Andrew Gordon, The Rules of the Game: Jutland and British Naval Command, John Murray.
  • David Brown, Warrior to Dreadnought: Warship development 1860-1905, Chatham Publishing.
  • Richard Hough, Admirals in Collision, Hamish Hamilton Ltd, London. Copyright 1959.
  • Oscar Parkes British Battleships, ISBN 0-85052-604-3.
  • Louis Decimus Rubin, The Summer the Archduke Died: Essays on Wars and Warriors, University of Missouri Press, [2008], ISBN 0-8262-1810-5
  • Rear-Admiral C. C. Penrose Fitzgerald, Life of Vice-Admiral Sir George Tryon K.C.B., William Blackwood and sons, Edinburgh and London, 1897
  • The Times, The Loss of HMS Victoria, 2 November 1893, page 4, issue 34098, column A. (Admiralty minutes describing the sinking)
  • Minutes of Proceedings at a Court-Martial held on board her Majesty's ship Hibernia at Malta, on Monday, the seventeenth day of July 1893; and by adjournment, every day thereafter (Sunday excepted) to the Twenty-seventh day of July 1893, to enquire into the loss of her Majesty's ship Victoria , Her Majesty's Stationery Office, printed by Darling & son Ltd, 1893.
