أرجيروديت

(تم التحويل من أرگيروديت)
Argyrodite
العامة
التصنيفSulfide mineral
الصيغة
(repeating unit)
Ag8GeS6
تصنيف سترونز2.BA.35
النظام البلوريOrthorhombic
Crystal classPyramidal (mm2)
H-M symbol: (mm2)
Space groupPna21
Unit cella = 15.149, b = 7.476
c = 10.589 [Å]; Z = 4
التعرف
ColorBlack, purplish tinge
Crystal habitPseudo-octahedra or pseudo-cubic, dodecahedra, cubes; radiating crystal aggregates, botryoidal crusts, or massive
TwinningPseudospinel law {111} penetration twins
CleavageAbsent
FractureUneven to conchoidal
Mohs scale hardness2.5
LusterMetallic
DiaphaneityOpaque
الجاذبية النوعية6.2-6.5
الصفات البصريةWeakly anisotropic
PleochroismWeak
References[1][2]

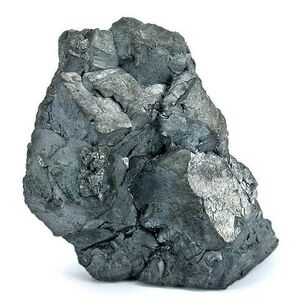

Argyrodite is an uncommon silver germanium sulfide mineral with formula Ag8GeS6. The color is iron-black with a purplish tinge, and the luster metallic.

Discovered and named by Albin Weisbach in 1886,[4] it is of interest as it was the material from which Clemens Winkler isolated the element germanium, 15 years after it had been postulated by Mendeleev. It was first described for an occurrence in the Himmelsfürst Mine, Erzgebirge, Freiberg, Saxony, Germany.[2]

The Freiberg mineral had previously been imperfectly described by August Breithaupt under the name "Plusinglanz", and Bolivian crystals were incorrectly described in 1849 as crystallized brongniardite.[5]

Isomorphous with argyrodite is the corresponding tin bearing mineral Ag8SnS6, also found in Bolivia as pseudocubic crystals, and known by the name canfieldite.[5] There is also a related mineral, putzite, with composition (Cu4.7Ag3.3)GeS6.

Argyrodite gets its name from the Greek words that loosely translate into "rich in silver".[1]

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

مادة بنمط الأرجيروديت

The term argyrodite is also used for other materials with a similar crystal structure, in particular lithium based argyrodite-type materials, which have received interest from researchers as a potential solid-state electrolyte for lithium-ion batteries.[6][7]

They are considered to be of the form:

Li 7-xBCh 6-xX x

With x between 0 and 1, B denoting either phosphor or arsenic, Ch for sulfur or selenium and X for chlorine, bromine or iodine.[6] However, other forms exist and can be grouped into three main categories, halogen-based argyrodites, halogen-based argyrodites doped with additional semi-metal or metal components and halogen-free argyrodites based on Li, P, S along with a semi-metal.[8]
